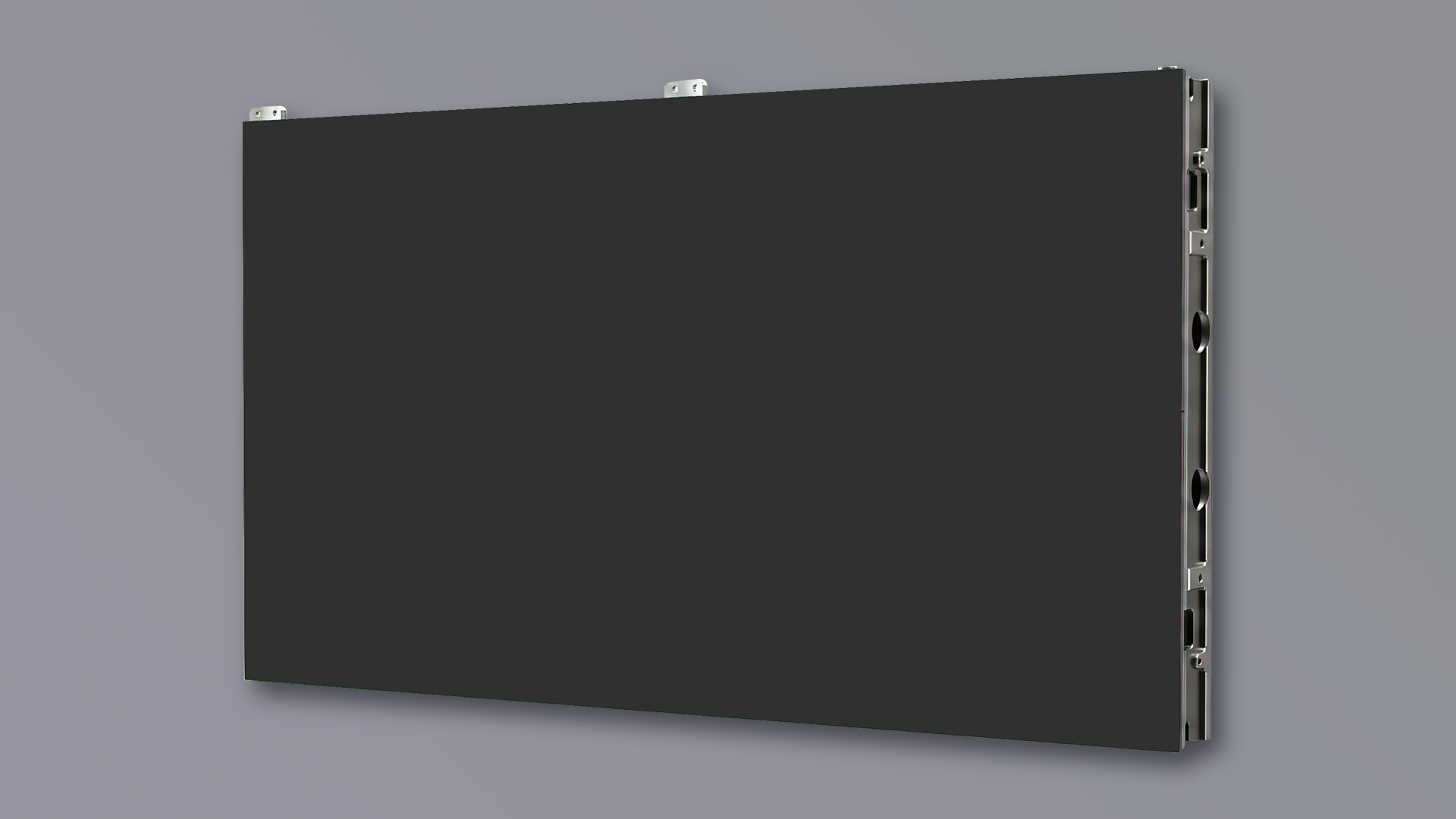

CORE OUTDOOR SERIES

High-brightness direct view LED built to perform beyond the walls. The Core Outdoor Series combines fully sealed MIP technology, 3,500 cd/m² brightness, and IP66 protection to deliver vivid, reliable imagery in demanding outdoor environments.

BRILLIANT IN ANY WEATHER

The Core Outdoor Series combines fully sealed MIP technology, all-aluminum construction, and up to 3,500 cd/m² brightness to deliver clear, dependable direct view LED performance outdoors. IP66 protection and fine pixel pitch options make it equally suited to high ambient light, close viewing, and demanding environmental conditions.

01

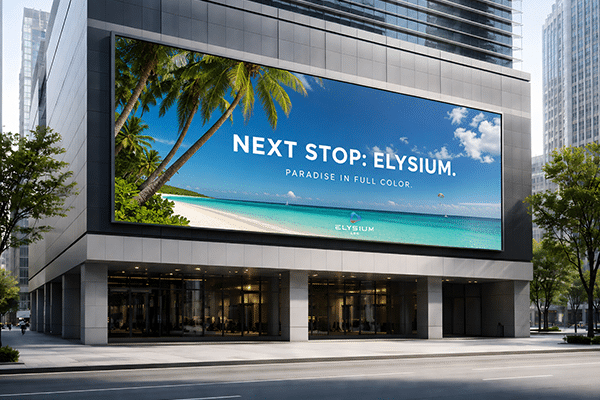

DESIGNED FOR DAYLIGHT VISIBILITY

→ High Brightness

Up to 3,500 cd/m² brightness keeps content clear, vivid, and readable in high ambient light and outdoor environments.

→ Fine Pixel Pitch

Pixel pitches down to 0.93mm support detailed imagery and closer viewing distances than traditional outdoor LED displays.

→ Wide Viewing

A 178° viewing angle helps maintain consistent image quality across broad outdoor viewing areas.

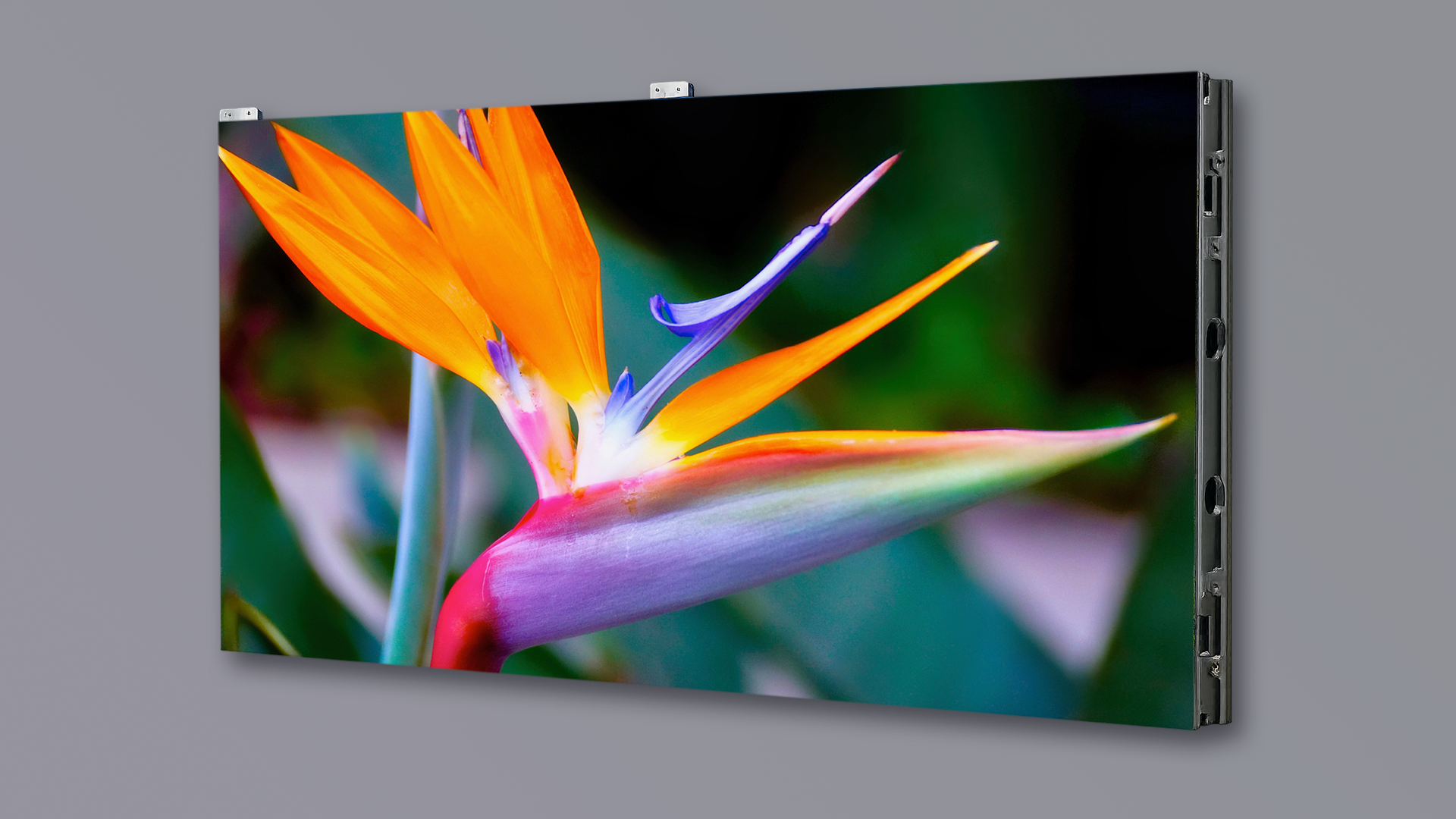

→ Visual Impact

High brightness and fine-pitch resolution combine to deliver detailed, attention-getting imagery throughout the day.

02

ENGINEERED FOR ALL-WEATHER RELIABILITY

→ IP66 Protection

A fully sealed design protects against rain, dust, humidity, and demanding environmental conditions.

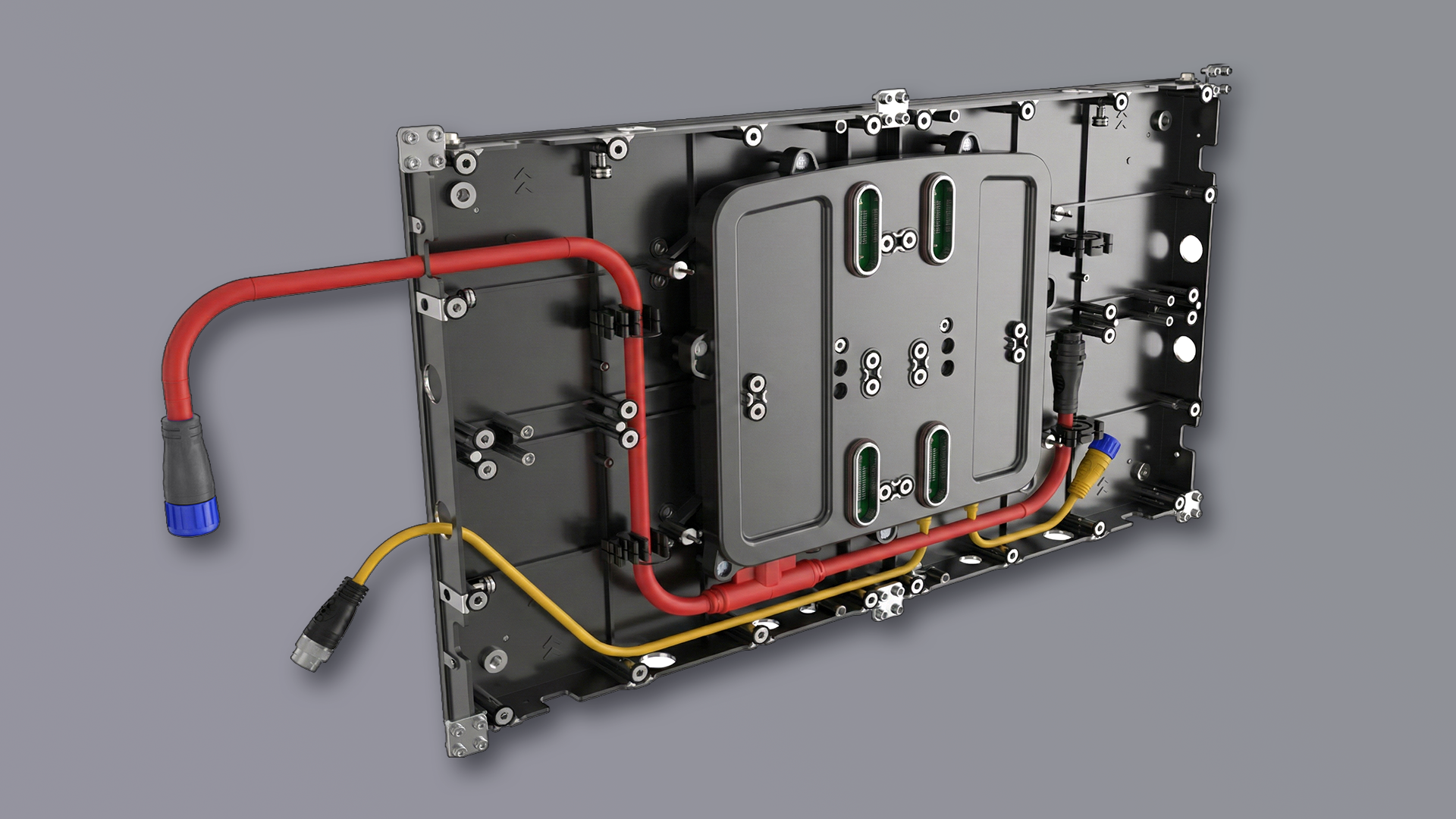

→ Aluminum Construction

All-aluminum cabinet and module construction adds strength, stability, and efficient heat dissipation.

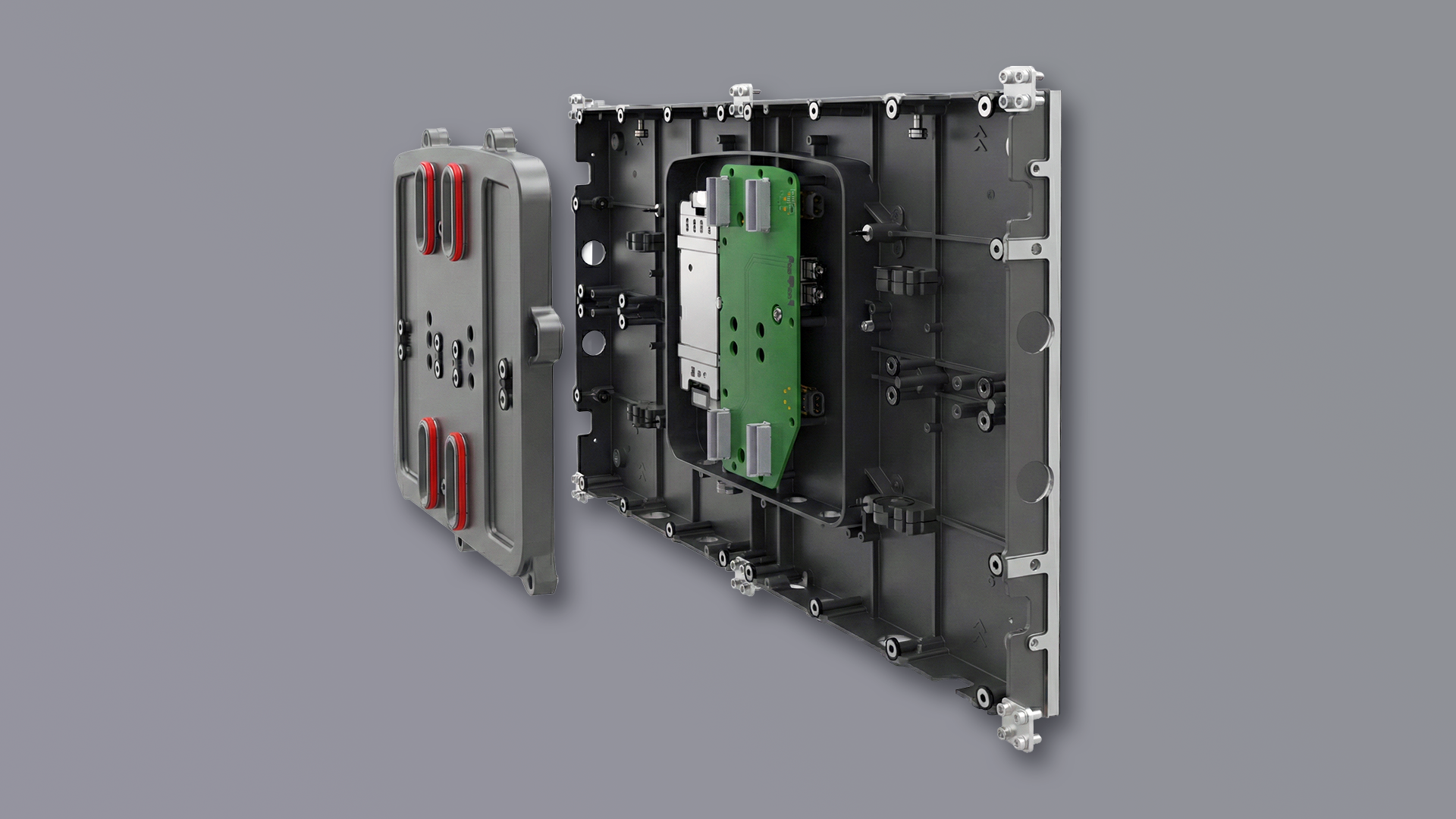

→ Front Serviceable Design

Complete front access provides greater installation flexibility while making routine maintenance faster and less disruptive.

→ Efficient by Design

Low power consumption helps reduce infrastructure requirements and long-term operating costs.

03

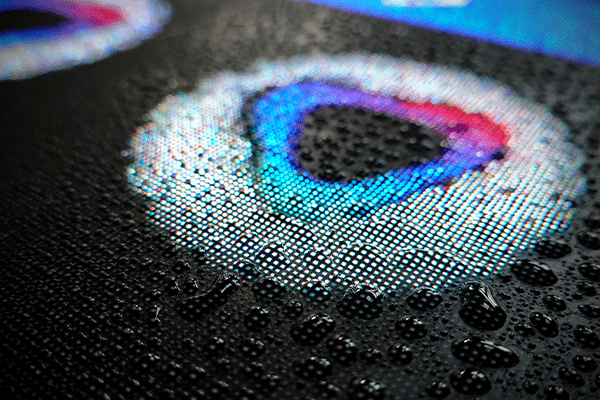

PROTECTION STARTS WITH MIP

→ Fully Sealed Technology

MicroLED-in-Package technology encapsulates and protects the diodes for dependable performance in exposed environments.

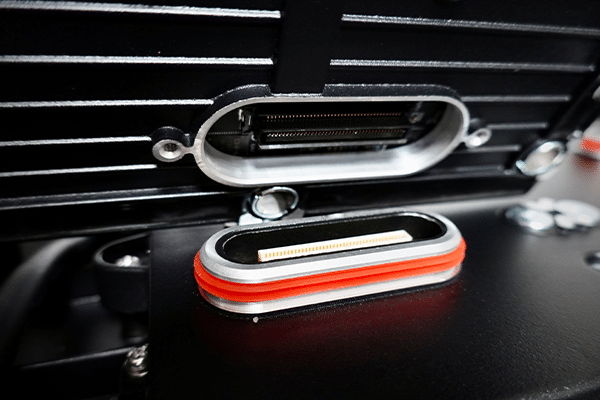

→ Built for Exposure

The sealed surface helps protect against moisture, dust, and contaminants that can compromise outdoor displays.

→ Thermal Stability

Direct bonding and aluminum construction help manage heat for more consistent performance over time.

→ Long-Term Durability

A protected display surface and robust construction support reliable operation through demanding outdoor conditions.

Flexible by design

The Core Outdoor Series is available in multiple fine pixel pitch options to support close viewing distances, high-resolution content, and a wide range of outdoor applications.

Available Models: CT09P, CT12P, CT15P (download spec sheet)

Configuration Options: Full HD Bundles, Ultra HD Bundles, Custom Configurations

CT09P CT12P CT15P
Pixel Pitch 0.93mm 1.25mm 1.56mm
Brightness 3500 cd/m2 3500 cd/m2 3500 cd/m2
IP Rating IP66 IP66 IP66
Contrast Ratio TBD TBD TBD
Color Gamut DCI-P3: TBD
Rec. 709: TBD
Rec. 2020: TBD
DCI-P3: TBD
Rec. 709: TBD
Rec. 2020: TBD
DCI-P3: TBD
Rec. 709: TBD
Rec. 2020: TBD
Viewing Angle H: 178° /
V: 178°
H: 178° /
V: 178°
H: 178° /
V: 178°
Color Bit Up to 16 bit Up to 16 bit Up to 16 bit
Refresh Rate 3840 Hz 3840 Hz 3840 Hz
Pixel Module Dimensions
(W x H x D)
11.8 x 6.64 x 0.57 in. /
300 x 168.75 x 14.5 mm.
11.8 x 6.64 x 0.57 in. /
300 x 168.75 x 14.5 mm.
11.8 x 6.64 x 0.57 in. /
300 x 168.75 x 14.5 mm.
Pixel Module Resolution 320 x 180 px 240 x 135 px 192 x 108 px
Panel Dimensions
(W x H x D)
23.6 x 13.29 x 1.96 in. /
600 x 337.5 x 50 mm.
23.6 x 13.29 x 1.96 in. /
600 x 337.5 x 50 mm.
23.6 x 13.29 x 1.96 in. /
600 x 337.5 x 50 mm.
Weight 15.43 lbs.
/ 7.0 kg.
15.43 lbs.
/ 7.0 kg.
15.43 lbs.
/ 7.0 kg.
Power Consumption
Max per panel 172 W 170 W 132 W
Max per sqm 850 W 842 W 650 W
Average per panel 57 W 57 W 44 W
Average per sqm 284 W 281 W 217 W
Input voltage AC 100-240 V AC 100-240V AC 100-240V
Working temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C
Working humidity 10% to 90% 10% to 90% 10% to 90%
Lifetime 100,000 Hours 100,000 Hours 100,000 Hours
